3T Double-Ratchet-Pawls Lifting Chain Pulley Block Elephant Type
Product briefing

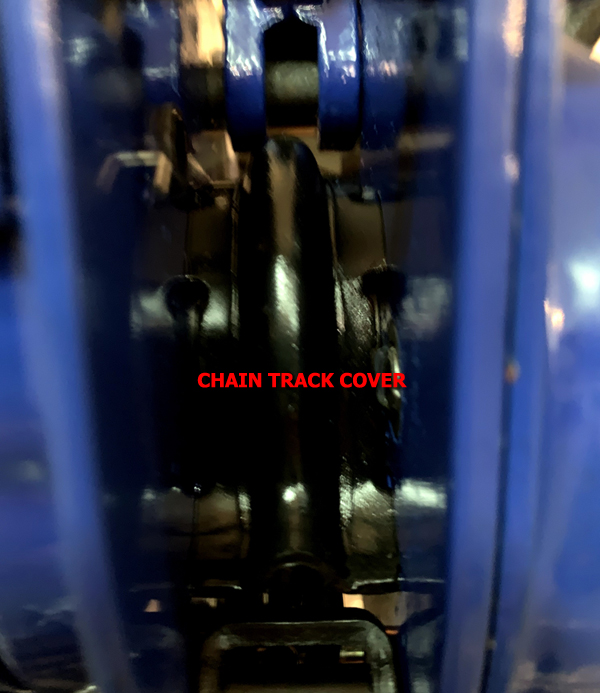

3T Double-Ratchet-Pawls Lifting Chain Pulley Block Elephant Type HSZ-CB, with chain track cover and guide wheel, is high quality elephant model lifting chain equipment for high-end international lifting market, with excellent inner structure and exquisite outline, giving users the best experience.
3T Double-Ratchet-Pawls Lifting Chain Pulley Block Elephant Type HSZ-CB is originally produced by Chongqing Kinglong Machinery Co., LTD for 55 years, with mature craftsmanship, imported chain making machines, skilled workers, stable raw materials sources, perfect quality control, guarantee high quality and delivery in time.
3T Double-Ratchet-Pawls Lifting Chain Pulley Block Elephant Type Operation Instruction:
Before using, the product should be checked carefully on following spare parts, such as hooks, load chain, brake device and lubrication of the block. Only everything is under nomal condition, the chain pulley block can be put into operation.
Six rules should be followed for safe operation:
1. Don't lift any load exceeding rated capacity of the chain block.
2. Don't pull the goods or load up too high or too low.
3. Don't drag aslant the load.
4. To avoid any accident, working or passing under a lifting load is banned.
5. Don't use the chain block when the load chain is kinking.
6. In case of the hand chain failing to move, don't pull it voilently, but stop using it immidiately, then to check and maintain.

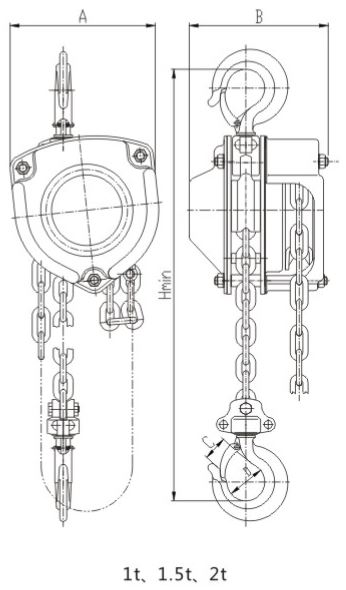

Elephant Type Chain Pulley Block Sizes in Details
| Model | | HSZ-CB1 | HSZ-CB1.5 | HSZ-CB2 | HSZ-CB3 | HSZ-CB5 | HSZ-CB10 |
| Capacity | Ton | 1 | 1.5 | 2 | 3 | 5 | 10 |
| Lift Height | M | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 |
| Proof Load | Ton | 1.25 | 2 | 2.5 | 4 | 6.3 | 12.5 |
| Min.Distance Between Hooks | mm | 330 | 413 | 430 | 570 | 685 | 775 |
| Hand Chain Full Pulling Load | N | 340 | 390 | 340 | 390 | 420 | 450 |
| Load Chain Fall | | 1 | 1 | 1 | 2 | 2 | 4 |
| Diameter of Load Chain | mm | 6 | 7.1 | 8 | 7.1 | 9 | 9 |
3 Ton Elephant Type Chain Pulley Block Features
| 1. | Thicker gear shield cover |  |
| 2. | Inner chain covers |  |
| 3. | Hand chain cover with perfect rolled edge |  |
| 4. | Double Ratchet Pawls |  |
Product Application
Hand chain hoist is usually used in the compact space and non-electricity place with its low cost and convenient carrying, such as factories, mines, farms, construction sites, wharves, docks and warehouses for installation of equipment and for loading and unloading goods.
Lifting Chain Pulley Hoist Picture
